Scientists watch diamond turn into graphite

In a surprising achievement, a team of scientists has turned diamond into graphite, using an X-ray laser. What may seem undesirable at first glance, is a decisive step forward in understanding the fundamental behavior of solids when they absorb energetic radiation. For the first time, the researchers around Beata Ziaja from CFEL and the Institute of Nuclear Physics in Krakow, Franz Tavella from SLAC National Accelerator Laboratory in the US and Sven Toleikis from DESY were able to follow the graphitization in a time-resolved manner. “In addition to these fundamental aspects, understanding the graphitization process is important for diamond-based technologies, since diamond is increasingly used for practical applications,” the scientists write in the current issue of High Energy Density Physics.

Diamond and graphite are different forms of carbon that differ in their inner crystal structure. Diamond is the high-pressure phase that forms deep in the earth. Under normal conditions, diamond is metastable, meaning that it converts back to graphite when the process is initiated with sufficient energy. There are different ways to trigger the conversion of diamond to graphite, for instance by simply heating the diamond under exclusion of oxygen or even with an aimed mechanical stroke. The other way round works as well: With heat and high pressure, graphite can be converted into synthetic diamonds that already have quite a market worldwide.

Diamond and graphite are different forms of carbon that can be transformed into each other. The transition from diamond into graphite has now been observed in detail with the help of an X-ray laser. Credit: DESY, Gesine Born

The team used the Italian soft X-ray free-electron-laser FERMI to shoot ultra-short flashes at tiny diamond slices with a thickness of just 0.3 millimeters. Usually, if you shoot such intense laser pulses at solid matter, it becomes unordered, or, as the scientists call it, amorphous. Diamond is a different example. It can switch its internal structure to a different order, thereby turning into graphite. “In principle, it was known that if you send enough energy into diamond, it should graphitize,” explains Toleikis. “But it was not known exactly how this happens.”

There are two possible paths: the common so-called thermal transition during which the absorbed energy is transferred to the internal crystal lattice of the diamond until it re-organizes itself into the graphite structure. And a non-thermal mode, where the energy absorbed by just a small fraction of the electrons in the diamond changes the internal potential energy surface, triggering a re-arrangement of the crystal lattice. “Non-thermal transition is much faster than thermal, the latter occurring on picosecond timescales,” explains co-author Ziaja. A picosecond is a trillionth of a second.

Additionally to the experiments, the CFEL researchers Nikita Medvedev, Victor Tkachenko and Beata Ziaja had developed a computer program to simulate the phase transition in diamond induced by X-rays. “Our code predicted that it would be non-thermal, and our experiments confirmed that,” says Ziaja. With FERMI's brief X-ray pulses of roughly just 50 femtoseconds duration, the scientists were able to follow the phase transition and found that it takes just about 150 femtoseconds. “It is the first time that this has been observed in a time-resolved fashion,” underlines Toleikis. A femtosecond (a quadrillionth of a second) is a thousand times shorter than a picosecond.

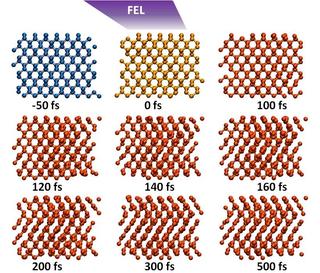

Sequence of the phase transition from diamond to graphite. Credit: CFEL, Nikita Medvedev

“The X-ray pulses excite the electrons,” explains first author Tavella. “If just about 1.5 per cent of the electrons are excited, the crystal already starts to change its internal organization, flipping to the graphite state.” The observations not only settle the question on how diamond graphitizes when excited with X-rays. They also validate the computer code used for the simulation. “We can now use the code for other materials as well. We have already made calculations for silicon and gallium arsenide,” says Ziaja. “It can be used for any X-ray laser excitation experiments.” Owing to the industrial importance of diamond, its stability and the question of graphitization has been investigated under various factors like high pressure, annealing and optical lasers. The advent of free-electron lasers with their ultra-short pulses now enabled the researchers to follow the phase transition on a femtosecond timescale.

Scientists from SLAC National Accelerator Laboratory, CFEL, Deutsches Elektronen-Synchrotron DESY, Hochschule Emden/Leer,  the University of  Oldenburg, Helmholtz-Zentrum Dresden-Rossendorf, Czech Academy of Sciences, the Italian synchrotron Elettra, Helmholtz-Institute Jena, the University of Hamburg, the European XFEL, and the Polish Academy of Sciences were involved in this work.
