Scientists create “Swiss army knife” for electron beams

CFEL scientists at DESY have created a miniature particle accelerator for electrons that can perform four different functions at the push of a button. The experimental device measuring just a few millimeters across is driven by a Terahertz radiation source and can accelerate, compress, focus and analyze electron bunches in a beam. The developers present their “Segmented Terahertz Electron Accelerator and Manipulator” (STEAM) in the current issue of Nature Photonics. Terahertz radiation is located between microwaves and the infrared in the electromagnetic spectrum.




The mini accelerator STEAM (center) is driven by Terahertz radiation (yellow, coming from both sides). It can accelerator, compress, focus and analyze the incident electron bunches (blue). Credit: DESY, Lucid Berlin

This way, the scientists can control with ultra-high precision, what part of the Terahertz wave an electron bunch hits when it enters the device. Depending on the arrival time of the electron bunch, STEAM performs its different functions. “For instance, a bunch that hits the negative part of the Terahertz electric field is accelerated,” explains Zhang. “Other parts of the wave lead to focusing or defocusing of the bunch or to a compression by a factor of ten or so.” While compression means the electron bunch gets shorter in the direction of flight, focusing means it shrinks perpendicular to the direction of flight.

Additionally, STEAM allows to perform an analysis of the structure of the electron bunch along its path of flight. For this technique, called streaking, the incoming electron bunch is deflected sideways in such a way that it becomes smeared out perpendicular to the direction of flight. When this smeared out bunch hits a detector, it produces a profile of the bunch along its path of flight. Streaking is regularly used to analyze the bunch structures in particle accelerators. “STEAM is a kind of Swiss army knife for electron beams,” says Zhang. To perform multiple functions, like compression and focusing, several units of the device can be combined.

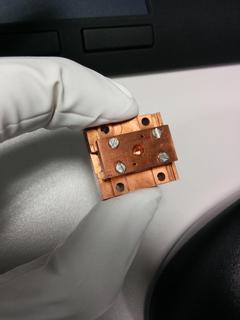

STEAM's housing is just centimeters across and easily fits between two fingers. The active structures inside are on a millimeter scale. Credit: DESY, Dongfang Zhang

One of the central features of the device is its perfect timing with the electron beam. The scientists achieve this by using the same laser pulse to generate an electron bunch and to drive the device. “To do this, we take an infrared laser pulse and split it up,” explains first author Dongfang Zhang from the group of Franz Kärtner at CFEL. “Both parts are fed into nonlinear crystals that change the laser wavelength: For the generation of an electron bunch the wavelength is shifted into the ultraviolet and directed onto a photocathode where it releases a bunch of electrons. For STEAM the wavelength is shifted into the Terahertz regime. The relative timing of the two parts of the original laser pulse only depends on the length of the path they take and can be controlled very precisely.”


STEAM compared to a matchbox car. The direction of the electron beam is symbolized. Credit: DESY, Gesine Born

Using Terahertz radiation also allows for the compact size of the STEAM device. “Terahertz radiation typically has a hundred times shorter wavelengths than the radio frequency radiation used in today's big particle accelerators. Therefore, all the structures in the device can shrink accordingly,” explains Kärtner, who is lead scientist at DESY and professor at Universität Hamburg Measuring just about two centimeters on the largest side, STEAM easily fits into a matchbox. “And that's just the size of the housing. The active structures are on a millimeter scale,” adds Zhang.

The technology is still at an experimental stage. The developers see STEAM as a first step on the road to a future generation of compact, Terahertz driven particle accelerators. These could enable new applications and complement today's accelerators. Also, the pocket manipulator can already be utilized today: accelerator groups around the world are already considering it for bunch characterization, as Kärtner points out: “STEAM can be used for future table-top accelerators, but its various functions are also interesting for existing machines.”

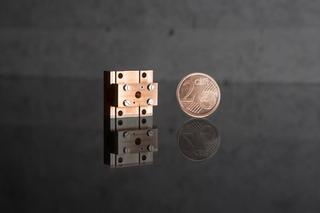

The complete device is only slightly larger than a two-Eurocent-coin. Credit: DESY, Gesine Born
