Scientists observe unusual melting of diamond

An international team of scientists has found evidence of an unconventional melting process in diamond induced by an X-ray laser beam. While in conventional melting the atoms of a sample start moving stronger and stronger until their bonds break due to heating, the incredibly intense X-ray laser flashes ripped the bonds apart straight away, and only afterwards the atoms started moving due to heating. The scientists around Ichiro Inoue from the RIKEN SPring-8 Center in Japan, Eiji Nishibori from University of Tsukuba in Japan and CFEL scientist Beata Ziaja report their observations in the current issue of Physical Review Letters.

The X-ray laser breaks the bonds in the diamond immediately and only then the atoms start moving (artist's impression). Credit: DESY, Gesine Born

X-rays are routinely used for scanning bags at airports and capturing medical images. In both cases, X-rays are produced by X-ray tubes (the X-ray equivalent of the electric light bulb). The X-ray beams from these tubes are weak because the waves making up the beams are out of sync. For more demanding applications, such as taking picosecond (trillionths of a second) snapshots of chemical reactions and studying the structures of small biomolecules, viruses, and smart materials, researchers need much more intense X-ray beams whose waves are in sync. For these applications, they use X-ray facilities known as X-ray free-electron lasers (XFELs).

XFELs generate X-ray flashes (called pulses) with femtosecond (quadrillionths of a second) durations and a peak brilliance of more than a billion times that of X-ray tubes. When the XFEL pulse is focused to micrometer- or nanometer-scale spots on a sample, many electrons are excited at once, causing irreversible structural changes. Understanding how matter responds to these intense X-ray pulses is essential for all applications. Now, the team has visualized the XFEL-matter interaction processes by using XFEL beams from the SPring-8  Angstrom Compact free electron LAser (SACLA).

The researchers used diamond as a sample and introduced a “pump-probe” technique using twin XFEL pulses: “The first pulse (pump pulse) excites the diamond and the second pulse (probe pulse) with a controlled delay time was used to investigate the structure of the sample,” explains Inoue. By carefully analyzing the diffraction intensity of the probe pulse, the researchers determined the spatial electron density in diamond after the excitation with the pump pulse.

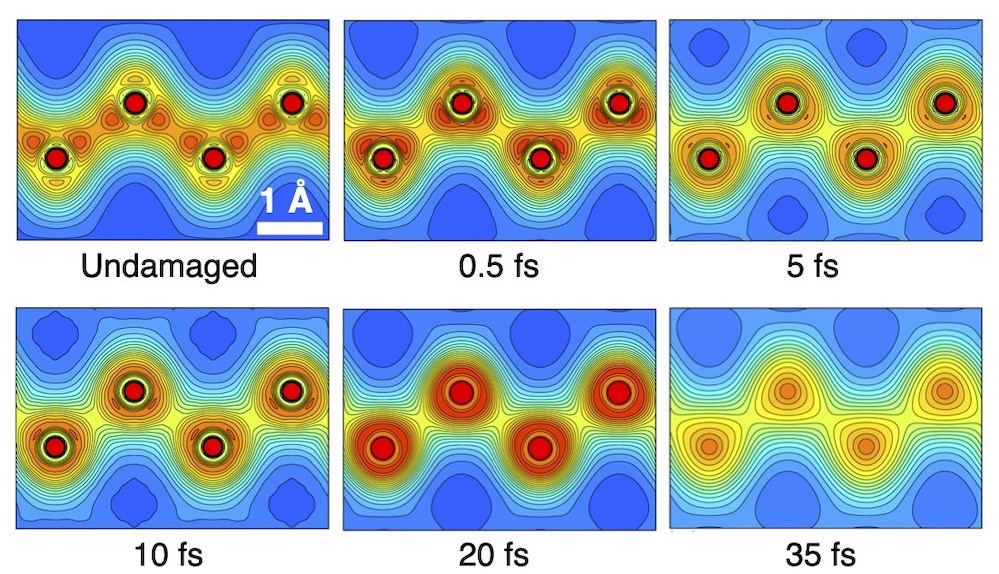

About five femtoseconds after the pump pulse, the electron distribution around each atom becomes almost uniform in all directions (isotropic). Credit: Inoue, Ziaja, Nishibori et al.

The measurement reveals that the strong ‘covalent’ bonds between the carbon atoms of the diamond are broken and the electron distribution around each atom becomes almost uniform in all directions (isotropic) within about five femtoseconds after the pump pulse, followed by the onset of the atomic movement underway to the melting. “Interestingly, the temporal order of the bond breaking and the atomic disordering is opposite to the conventional melting process, where the application of heat or pressure causes large thermal vibrations of atoms at first and later the bond breaking,” says Inoue.

The measured results were interpreted on the basis of dedicated theoretical simulations provided by a team including DESY members and international collaborators. These simulations showed that the observed displacement of carbon atoms was due to an ultrafast transition of the diamond's crystal structure caused just by the presence of many electrons excited by the intense X-ray FEL pulse. The structure transition forced atoms to quickly relocate their positions. “This femtosecond transition is called 'non-thermal' as it is not triggered by a much-longer-taking, 'thermal' heating of atoms in the crystal lattice,” explains Ziaja. “The simulations allowed to unambiguously identify the mechanism and the stages of the observed transition which ended in rapid diamond melting.”

Additional theory considerations confirmed the correct interpretation of the information contained in the so-called diffraction patterns that the X-ray pulses leave on the detector after being scattered by the diamond's crystal lattice. This supported the conclusion on the observed structural transition.

“The X-ray-induced non-thermal melting should be ubiquitous for many experiments with high-intensity XFEL pulses,” comments Nishibori. “In particular, our finding can make a huge impact on developing methodologies for structure determination with high-intensity XFEL pulses, as in this intensity regime, the X-ray-induced damage occurring during the irradiation cannot be neglected.”
